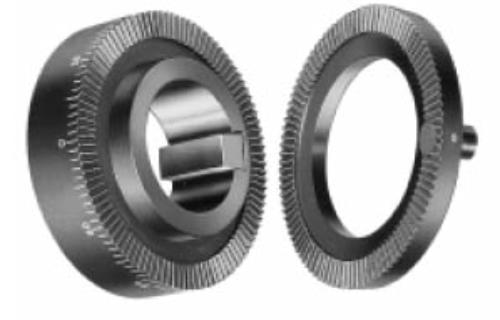

Adjustable Cam Holders

Use "Pick-up" Cams!

Adjustable Cam Holders take the place of regular cam holders on cross slide cam shafts. They

permit you to rotate the cams in relation to each other or relative to the lead cam. The ability

to adjust cams permits the use of one set of cross slide cams with different lead cam for a

number of similar jobs. The adjustable holders also provide an easy means for duplicating

setups.

On the new Nos. 00 & 2 machines, thick cam holders are used on the front slide; then holders

on the back. On earlier machines, thing holders are used on the front slide; thick holders on

the back.

Machines Cross Tool No. Where Used Slide 0 Thin 711-255-100 0 Thick 711-256-100 0 Thin 711-255-120 0 Thick 711-256-120 2 & 3 Thin 711-255-222 2 & 3 Thick 711-256-222 4 Front or Back 711-257-124
