Adjustable Floating Tap Holder

For Perfect Alignment of Tap with Work

The adjustable feature of these tap holders provides a definite advantage in accurately aligning the tap

with the work. the tap holder is adjustable on the tool body. this permits the tap to be centered accurately

with the hole and then clamped securely in position. The tap always remains parallel with the axis of the

work. Available in both non-releasing and releasing types.

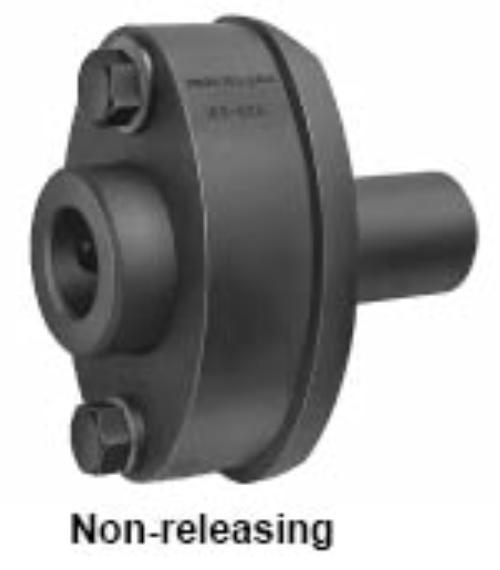

No. 100 Adjustable tap Holders

Non-releasing with Anti-friction Pull-out

These holders are a pull-out type for use on automatic machines where the spindle is reversed automatically. Taps are held in the

holder either directly, or by a bushing. An extra "finish weight" spring is furnished so a finish tap can pick up a rough tapped

thread. Holders are supplied with a through hole to end the need for cutting off taps.

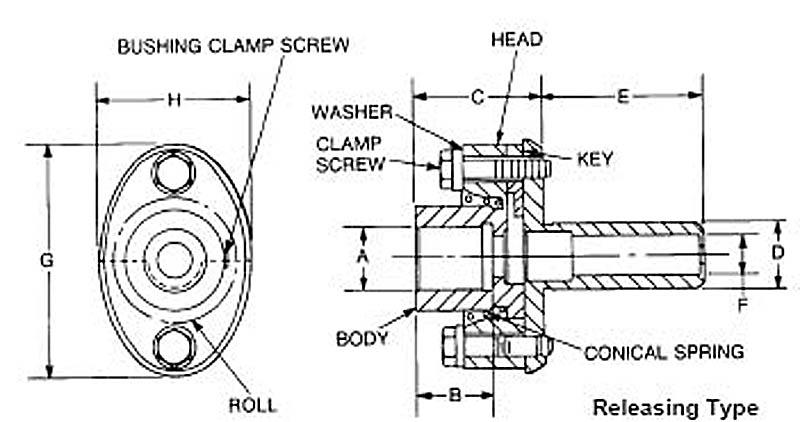

No. 105 Adjustable tap Holders

Releasing Type

Releasing tap holders have a clutch mechanism which releases the tap when it reaches the

required depth. They work well in hand operated machines and on automatic machines when

you need a releasing holder to simplify the cam design.

Holders are furnished for right-hand tapping. They can be converted to left-hand tapping simply by changing the roll to the other

pocket provided in the head. Holders are provided with a through hole as well as a reversible hardened driving key and variable

pull-out.

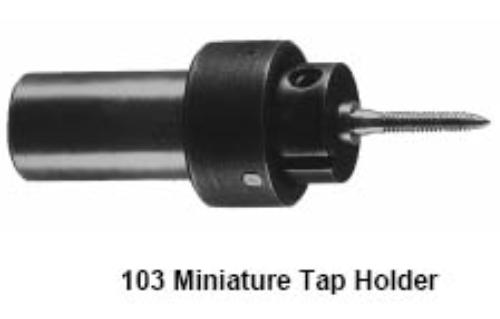

Shank Dia. Tool No. Non-releasing Holders 5/8" 711-100-400 5/8" 711-103-100* 3/4" 711-100-320 1" 711-100-322 Releasing Holders 5/8" 711-105-2-- 3/4" 711-105-311 1" 711-105-312 1-1/4" 712-105-1125# 1-1/2" 712-105-1150# 1-3/4" 712-105-11175# *Miniature Tap Holder #Have flat on shank. Tool No. G B C D E F G H Adjustable Tap Holders - Non Releasing 711-100--400 1/2 11/16 1-1/16 5/8 1-1/8 5/16 2-1/4 1-1/2 711-100-320 5/8 13/16 1-7/16 3/4 2 7/16 3 2 711-100-322 1 1-3/16 2 1 2-1/16 5/8 3-5/8 2-3/8 711-103-100* 1/4 3/8 13/16 5/8 1-1/8 -- 15/16 15/16 Adjustable Tap Holders - Releasing 711-105-200-1/4 1/2 11/16 1-1/16 5/8 1-1/8 5/16 2-1/4 1-1/2 711-105-311 5/8 13/16 1-7/16 3/4 2 7/16 3 2 711-105-312 1 1-3/16 2 1 2-1/16 5/8 3-5/8 2-3/8 712-105-1125# 1-1/2 1-11/16 2-3/4 1-1/4 3-3/4 3/4 4-1/8 2-3/4 712-105-1150# 1-1/2 1-11/16 2-3/4 1-1/2 3-3/4 3/4 4-1/8 2-3/4 712-105-1175# 1-1/2 1-11/16 2-3/4 1-3/4 3-3/4 3/4 4-1/8 2-3/4 Tool No. 711-100-400 711-100-320 711-100-322 711-103-100* Body 211-10002-4 211-10006-4 211-10008-5 211-10302 Head 211-10020-1 211-10027-2 211-10024-5 NONE Shank 211-10505-2 211-10538-2 211-1050805 211-10301 Clamp Screw 211-10550 2121-10559-1 92-5035-1040 92-5390-606 Cl. Screw Washer 92-2040-602-12 92-2040-1002-20 92-2040-1002-20 NONE Spring 211-10551 211-10554-1 211-10558-2 92-1000-1228-22 Ball 429-1288 NONE NONE NONE Bushing Cl. Screw 92-5390-806 92-5390-808 92-5390-1012 NONE Finish Tap Spring 92-1000-1424-19 92-1000-1640-18 211-10031-1 NONE Key NONE NONE NONE 211-10303 Spring Ret. Screw NONE NONE NONE 472-606 Tool No. 711-105-200 711-105-311 711-105-312 712-105-1125# 712-105-1150# 712-105-1175# Body 211-10501-5 211-10502-3 211-10503-4 212-10505 212-10505 212-10505 Head 211-10526-2 211-10534-2 211-10527-3 212-10506 212-10506 212-10506 Key 211-10548 211-10552 211-10556-1 212-10508 212-10508 212-10508 Roll 211-10549-1 211-10560 211-10557-1 211-10557-1 211-10557-1 211-10557-1 Clamp Screw 211-10550 211-10559-1# 92-5035-1040 92-5035-1244 92-5035-1244 92-5035-1244 Spring 211-10551 211-10554-1 211-10558-2 212-10510 212-10510 212-10510 Cl. Scr. Washer 92-2040-602-12 92-2040-1002-20 92-2040-1002-20 92-2040-1202-24 92-2040-1202-24 92-2040-1202-24 Bushing Cl. Scr. 92-5390-806 92-5390-808 92-5390-1012 472-689 472-689 472-689 Finish Tap Spr. 92-1000-1424-19 92-1000-1640-18 211-10031-1 92-1000-3234-12 92-1000-3234-12 02-1000-3234-12 Shank 211-10505-2 211-10538-2 211-10508-5 212-10501 212-10502 212-10503 *Miniature Tap Holder - Reference drawing above # Have flat on shank
