Bushing Blanks

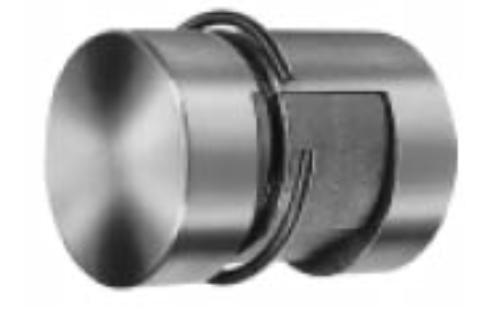

Bushing blanks are used in various holders to hold drills, taps, reamers, etc. They are turned to size

and incorporate a loose shoe for clamping the tool. A circular spring in a groove, holds the shoe in

place.

Mach Where Used O.D. Lg. Tool No. 00 and 00G Auto. 1/4 7/16 211-11015 0 and 0G Auto. 3/8 7/16 211-11008 00 Hand, 0 W.F. 1/2 9/16 211-11016 1 Wire Feed 1/2 3/4 211-11010 5/8 7/8 211-11011 3/4 1 211-11012 2 Hand, 2 W.F. 1 1-1/4 211-11013 1-1/4 1-5/8 211-11019 1-1/2 1-3/4 211-11014 4 Auto. 1-3/4 1-3/4 211-11018 175-120 & 176-120 Pointing Tools 3/4 3/8* 211-17510 * Includes Lip 1/16 Wide, 13/16 Dia.
