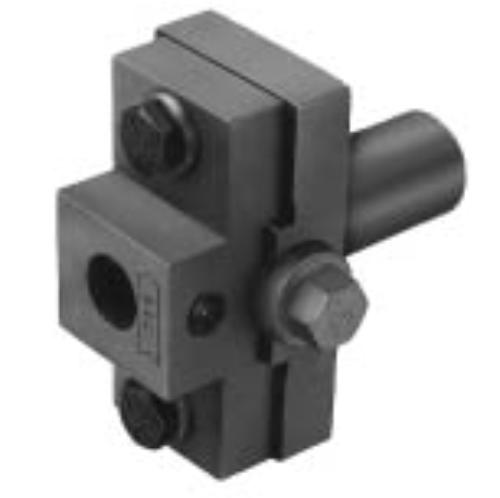

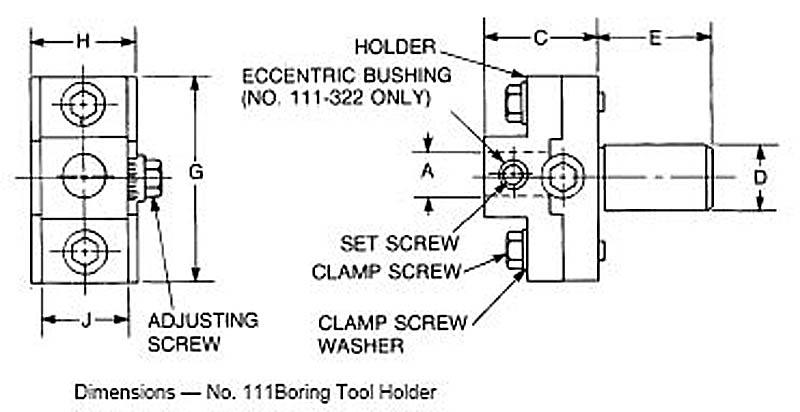

No. 111 Boring Tool Holders

Adjustable head with Graduated Screw Speeds Set-up

Graduated adjusting screw permits the rapid and accurate setting of the boring tool, each graduation

representing .001" of the radial movement.

No. 711-111-200 and 711-111-220 have an eccentric hole and use concentric boring tools shown below.

No. 711-111-322 is furnished with a half-inch eccentric bushing for holding the concentric boring tools

listed. It is made with a concentric hole, 3/4" dia. to accommodate 3/4" shank boring tools.

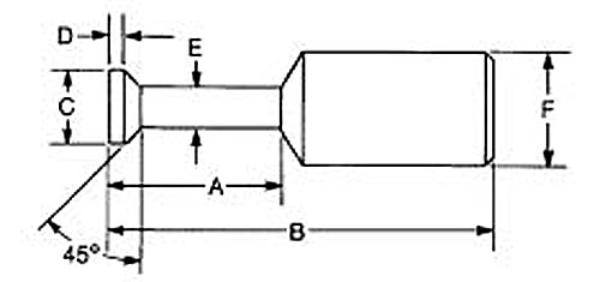

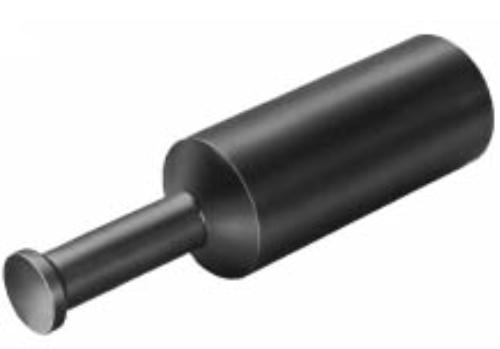

Concentric Boring Tools

High Speed Steel - Hardened and Ground

Shank Slide Eccentricity Tool No. 5/8" 3/32" .020" 711-111-200 3/4" 5/32" .026" 711-111-220 1" 5/32" .035" 711-111-322# #711-111-322 has a concentric hole and is furnished with .035" eccentric bushing. Holder accommodates 3/4" shank boring tools directly. It also has a concentric bushing with 1/2" ID. Inches Tool No. A C D E G H J 711-111-200 5/16 1 5/6 1-1/8 1-7/8 1 3/4 711-111-220 1/2 1-5/16 3/4 1-1/2 2-5/8 1-3/8 1-1/8 711-111-322 .75# - .5* 1.82 1 2 3.25 1.75 1.5 *With eccentric bushing #Without bushing Tool No. 711-111-200 711-111-220 711-111-322 Holder 211-11102-2 211-11108-2 211-11106-3 Adjusting Screw 211-11103 211-111110-1 211-11111 Clamp Screw 211-10520-1 92-5035-832 92-5035-1234 Set Screw 92-5390-808 92-5390-1012 92-5381-1036 Clamp Scr. Washer 211-10545-1 92-2040-8012-18 92-2040-1202-24 Shank 211-11101-2 211-11109-2 211-11105-3 Concentric Bushing NONE NONE 211-11112 Ecc. Bushing NONE NONE 211-11113 Tool Clamp Screw NONE NONE 92-5390-1016 Bushing Clamp Scr. NONE NONE 92-5390-1216 Tool Holder Tool No. where used Pkg. of 4 711-111-200 711-94600 711-94601 711-94602 711-94603 711-111-220 711-94604 711-111-322 711-94605 711-94606 Inches Tool No. A B C D E F 711-94600 5/16 13/16 0.125 0.046 0.101 5/16 711-94601 3/8 7/8 0.156 0.046 0.126 5/16 711-94602 7/16 15/16 0.187 0.046 0.151 5/16 711-94603 5/8 1-1/8 0.25 0.046 0.2 5/16 711-94604 5/8 1-3/8 0.23 0.062 0.19 1/2 711-94605 3/4 1-1/2 0.312 0.062 0.25 1/2 711-94606 15/16 1-11/16 0.375 0.062 0.3 1/2
