No. 180 Pointing Tool Holders For Circular Tools

Most Economical Means for Finishing Ends of Work

Circular Pointing Tool Holders are used for pointing or forming the end of short, rigid work

pieces where no support is required. The circular tool may be removed readily for grinding.

The holders are made in two sections so you can easily center the cutting tool with the work. They

are easily adjusted for right or left hand use. One hardened tool blank is supplied with the holder.

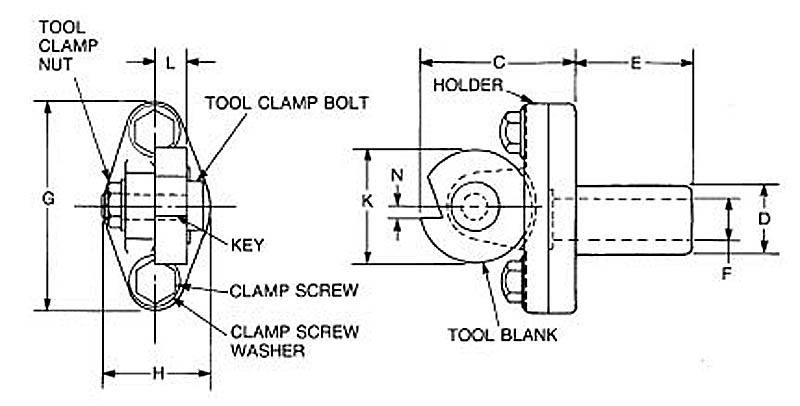

Shank Dia. Tool No. 1" 711-180-122 Inches Tool No. C D E F G H K L N 711-180-122 2-5/16 1 1-25/32 5/8 3-1/4 1-3/4 1-3/4 1/2 1/8 Tool No. 711-180-122 Holder 211-18006 Clamp Screw Washer 92-2040-1202-24 Clamp Screw 92-5035-1224 Holder Key 92-970-412 Tool Clamp Bolt 211-18012 Tool Clamp Nut 92-970-412 Shank 211-18003 Tool Blank 211-18008
Brown-Sharpe SMT
Division of Lester Detterbeck Enterprises Ltd.
Website Design by North Country Website Design_
Copyright © 2016 Brown-Sharpe SMT. A division of Lester Detterbeck Enterprises, Ltd.

No. 180 Pointing Tool Holders For

Circular Tools

Most Economical Means for Finishing Ends of Work

Circular Pointing Tool Holders are used for

pointing or forming the end of short, rigid

work pieces where no support is required.

The circular tool may be removed readily for

grinding.

The holders are made in two sections so you can easily center the

cutting tool with the work. They are easily adjusted for right or

left hand use. One hardened tool blank is supplied with the

holder.

Shank Dia. Tool No. 1" 711-180-122 Tool No. 711-180-122 Holder 211-18006 Clamp Screw Washer 92-2040-1202-24 Clamp Screw 92-5035-1224 Holder Key 92-970-412 Tool Clamp Bolt 211-18012 Tool Clamp Nut 92-970-412 Shank 211-18003 Tool Blank 211-18008 Inches Tool No. C D E F G H K L N 711-180-122 2-5/16 1 1-25/32 5/8 3-1/4 1-3/4 1-3/4 1/2 1/8
