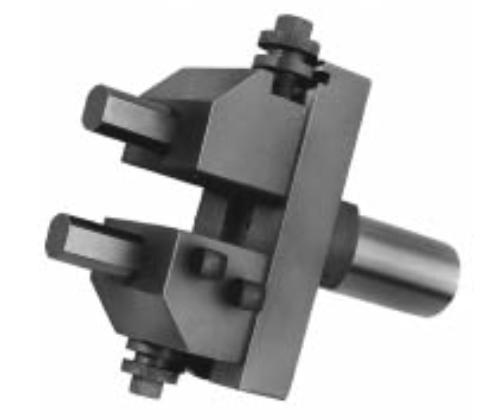

No. 183 Adjustable Trepanning Tool

Eliminates Need for Costly Special Tools for Trepanning - Fully Adjustable - Faster Setting - Versatile

Now, trepanning can be performed quickly and effectively with a tool designed specifically for

trepanning and end-working operating. Ruggedly built, this new tool utilizes two blades which

can be adjusted by means of graduated adjusting screws.

Blades have flats ground on two sides to facilitate preparation of cutting edges and to ensure they

will maintain the set position in the tool.

Where many special tools were required for producing grooves, recesses, ways and other features

on the ends of parts, a single trepanning tool can perform all of these operations faster and more

accurately.

Blades can be set to cut for roughing and finishing or for cutting two diameters simultaneously. The tool is supplied with two

blades.

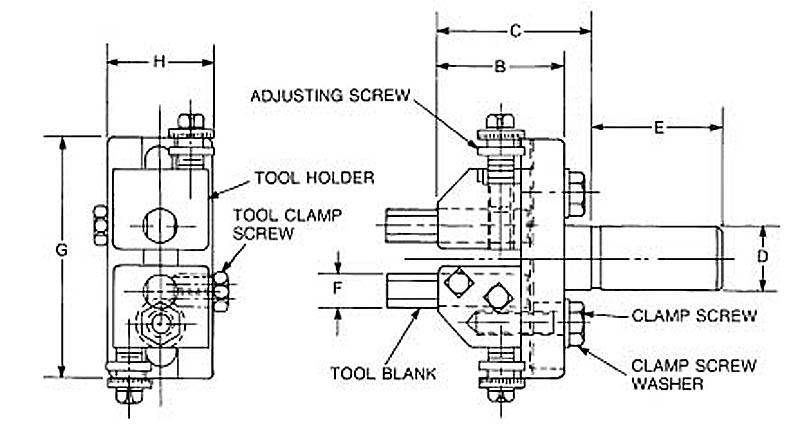

Capacity Shank Dia. Min. Dia. Max. Dia. Tool No. 1" .3" 2.38" 711-183-122 Blades for Trepanning Tool are 211-18304 Inches Tool No. B C D E F G H 711-183-122 1.94 2.34 1 2 0.5 3.7 1.6 Tool No. 711-183-122 Tool Holder 211-18302 Adjusting Screw 211-18303 Tool Blank 211-18304 Tool Clamp Screw 92-5010-1020 Clamp Screw 92-5035-1236 Washer 92-2040-1202-24 Shank 211-18301
Brown-Sharpe SMT
Division of Lester Detterbeck Enterprises Ltd.
Website Design by North Country Website Design_
Copyright © 2016 Brown-Sharpe SMT. A division of Lester Detterbeck Enterprises, Ltd.

No. 183 Adjustable Trepanning Tool

Eliminates Need for Costly Special Tools for Trepanning -

Fully Adjustable - Faster Setting - Versatile

Now, trepanning can be performed quickly

and effectively with a tool designed

specifically for trepanning and end-working

operating. Ruggedly built, this new tool

utilizes two blades which can be adjusted by

means of graduated adjusting screws.

Blades have flats ground on two sides to

facilitate preparation of cutting edges and to ensure they will

maintain the set position in the tool.

Where many special tools were required for producing grooves,

recesses, ways and other features on the ends of parts, a single

trepanning tool can perform all of these operations faster and more

accurately.

Blades can be set to cut for roughing and finishing or for cutting

two diameters simultaneously. The tool is supplied with two blades.

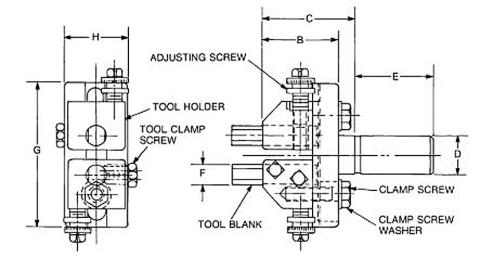

Capacity Shank Dia. Min. Dia. Max. Dia. Tool No. 1" .3" 2.38" 711-183-122 Blades for Trepanning Tool are 211-18304 Inches Tool No. B C D E F G H 711-183-122 1.94 2.34 1 2 0.5 3.7 1.6 Tool No. 711-183-122 Tool Holder 211-18302 Adjusting Screw 211-18303 Tool Blank 211-18304 Tool Clamp Screw 92-5010-1020 Clamp Screw 92-5035-1236 Washer 92-2040-1202-24 Shank 211-18301
