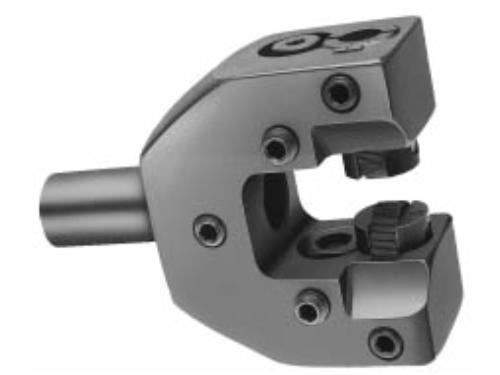

No. 185 Adjustable Knurl Holders

Increase Capacities with Greater Rigidity!

These Knurl Holders have a bushing arrangement which facilitates the rapid adjustment or

replacement of knurls. Loosening two screws allows the bushing, the adjusting screw, and the

swivel to be adjusted or removed as a unit. Under actual production conditions, set-up time has

been reduced as much as 50%.

These holders have ruggedness and rigidity and use full machine capacities. Carbide Knurl Pins

are provided for long life. Knurl not furnished.

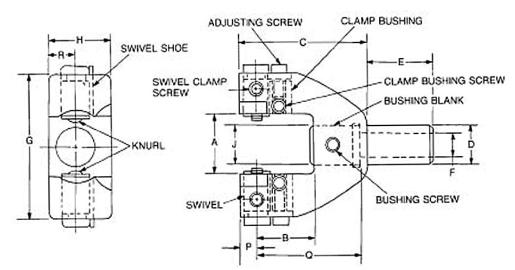

Shank Knurl Size                                                Knurling Capacity Tool No. Dia. I.D. x O.D. x W. Length Diameter 5/8" 3/16" x 1/2" x 3/16" 1-1/6" from 1/16" to 1/2" 711-185-200 5/8" from 1/2" to 3/4" 3/4" 1/4"x 5/8" x 1/4" 1-3/4" from 1/8" to 9/16" 711-185-220 15/16" from 9/16" to 3/4" 1" 1/4" x 5/8" x 1/4" 2-1/2" from 3/16" to 15/16" 711-185-322 1-3/8" from 15/16" to 1-5/8" 1-1/4" 1/4" x 3/4" x 1/4" 1.4" from 1-13/32" to 2-13/32" 711-185-123 * from 3/16" to 9/16" 1-1/4" 1/4 x 3/4" x 3/8" 3-1/2" from 9/16" to 1-11/16" 712-185-1125 2" from 1-11/16" to 2-1/16" * from 3/16" to 11/16" 1-1/2" 1/4" x 3/4" x 3/8" 3-1/2" from 11/16" to 1-11/16" 712-185-1150 2" from 1-11/16" to 2-1/16" * from 3/16" to 15/16" 1-3/4" 1/4" x 3/4" x 3/8" 3-1/2" from 15/16" to 1-11/16" 712-185-1175 2" from 1-11/16" to 2-1/16" * Turned diameter will pass through shank bore Inches Tool No. A B C D E F G H J P Q R 711-185-200 7/8 5/8 1-5/8 5/8 1-1/8 3/8 2 1-1/6 1/2 11/32 1-5/32 7/16 711-185-220 1 1-1/16 2-7/16 3/4 1-1/2 7/16 2-3/4 1-3/8 5/8 7/16 1-7/8 9/16 711-185-322 1-5/8 1-1/2 3-5/16 1 1-3/4 5/8 3-3/4 1-5/8 1 7/16 2-11/16 11/16 711-185-123 2-1/2 1-3/8 2-13/16 1-1/4 2 11/16 4-5/8 1-3/4 3/4 1/2 2-3/8 3/4 712-185-1125# 2-1/8 2-1/8 4-1/8 1-1/4 3-3/4 5/8 4-5/8 2 1-3/4 9/16 3-13/16 1 712-185-1150# 2-1/8 2-1/8 4-1/8 1-1/2 3-3/4 3/4 4-5/8 2 1-3/4 9/16 3-13/16 1 712-185-1175# 2-1/8 2-1/8 4-1/8 1-3/4 3-3/4 1 4-5/8 2 1-3/4 9/16 3-13/16 1 Note: Knurling length is limited only by the machine capacity when workpiece will pass through the tool shank. # Have flat on shank. Tool No. 711-185-200 711-185-220 711-185-322 711-185-123 Swivel Shoe 211-18515 211-18516 211-18516 211-28516 Swivel Clamp Screw 92-5390-808 92-5390-1012 92-5390-1020 92-5390-1016 Swivel 211-18506-4 211-18507-3 211-18508-4 211-18525 Carbide Knurl Pin 211-18512 211-18513 211-18513 211-18526 Knurl Pin Set Screw 472-3520 472-3520 472-3520 92-5071-406 Adjusting Screw 211-18519 211-18520 211-18520 211-18520 Clamp Bushing 211-18518 211-18521 211-18523-1 211-18523-1 Clamp Bushing Screw 92-5390-812 92-5390-1020 92-5390-1020 92-5390-1020 Bushing Screw 92-5390-812 92-530-1020 92-5390-1020 92-5390-1024 Body 211-18501-5 211-18502-2 211-18503-5 211-18524 Tool No. 712-185-1125 712-185-1150 712-185-1175 Body 212-18504 212-18504 212-18504 Swivel Complete 212-18505 212-18505 212-18505 Shoe 212-18516 212-18516 212-18516 Adjusting Screw 212-18506 212-18506 212-18506 Washer 92-2010-1604-32 92-2010-1604-32 92-2010-1604-32 Clamp Screw 92-5035-1640 92-5035-1640 92-5035-1640 Bushing Clamp Screw 92-5010-1636 92-5010-1636 92-5010-1636 Brass Pin 92-5010-1008 92-5010-1008 92-5010-1008 Swivel Clamp Screw 92-5390-1216 92-5390-1216 92-5390-1216 Shank 212-18501 212-18502 212-18503 Carbide Knurl Pin 211-18514 211-18514 211-18514
Brown-Sharpe SMT
Division of Lester Detterbeck Enterprises Ltd.
Website Design by North Country Website Design_
Copyright © 2016 Brown-Sharpe SMT. A division of Lester Detterbeck Enterprises, Ltd.

No. 185 Adjustable Knurl Holders

Increase Capacities with Greater Rigidity!

These Knurl Holders have a bushing

arrangement which facilitates the rapid

adjustment or replacement of knurls. Loosening

two screws allows the bushing, the adjusting screw, and the swivel

to be adjusted or removed as a unit. Under actual production

conditions, set-up time has been reduced as much as 50%.

These holders have ruggedness and rigidity and use full machine

capacities. Carbide Knurl Pins are provided for long life. Knurl not

furnished.

Shank Knurl Size                                                Knurling Capacity Tool No. Dia. I.D. x O.D. x W. Length Diameter 5/8" 3/16" x 1/2" x 3/16" 1-1/6" from 1/16" to 1/2" 711-185-200 5/8" from 1/2" to 3/4" 3/4" 1/4"x 5/8" x 1/4" 1-3/4" from 1/8" to 9/16" 711-185-220 15/16" from 9/16" to 3/4" 1" 1/4" x 5/8" x 1/4" 2-1/2" from 3/16" to 15/16" 711-185-322 1-3/8" from 15/16" to 1-5/8" 1-1/4" 1/4" x 3/4" x 1/4" 1.4" from 1-13/32" to 2-13/32" 711-185-123 * from 3/16" to 9/16" 1-1/4" 1/4 x 3/4" x 3/8" 3-1/2" from 9/16" to 1-11/16" 712-185-1125 2" from 1-11/16" to 2-1/16" * from 3/16" to 11/16" 1-1/2" 1/4" x 3/4" x 3/8" 3-1/2" from 11/16" to 1-11/16" 712-185-1150 2" from 1-11/16" to 2-1/16" * from 3/16" to 15/16" 1-3/4" 1/4" x 3/4" x 3/8" 3-1/2" from 15/16" to 1-11/16" 712-185-1175 2" from 1-11/16" to 2-1/16" * Turned diameter will pass through shank bore Inches Tool No. A B C D E F G H J P Q R 711-185-200 7/8 5/8 1-5/8 5/8 1-1/8 3/8 2 1-1/6 1/2 11/32 1-5/32 7/16 711-185-220 1 1-1/16 2-7/16 3/4 1-1/2 7/16 2-3/4 1-3/8 5/8 7/16 1-7/8 9/16 711-185-322 1-5/8 1-1/2 3-5/16 1 1-3/4 5/8 3-3/4 1-5/8 1 7/16 2-11/16 11/16 711-185-123 2-1/2 1-3/8 2-13/16 1-1/4 2 11/16 4-5/8 1-3/4 3/4 1/2 2-3/8 3/4 712-185-1125# 2-1/8 2-1/8 4-1/8 1-1/4 3-3/4 5/8 4-5/8 2 1-3/4 9/16 3-13/16 1 712-185-1150# 2-1/8 2-1/8 4-1/8 1-1/2 3-3/4 3/4 4-5/8 2 1-3/4 9/16 3-13/16 1 712-185-1175# 2-1/8 2-1/8 4-1/8 1-3/4 3-3/4 1 4-5/8 2 1-3/4 9/16 3-13/16 1 Note: Knurling length is limited only by the machine capacity when workpiece will pass through the tool shank. # Have flat on shank. Tool No. 711-185-200 711-185-220 711-185-322 711-185-123 Swivel Shoe 211-18515 211-18516 211-18516 211-28516 Swivel Clamp Screw 92-5390-808 92-5390-1012 92-5390-1020 92-5390-1016 Swivel 211-18506-4 211-18507-3 211-18508-4 211-18525 Carbide Knurl Pin 211-18512 211-18513 211-18513 211-18526 Knurl Pin Set Screw 472-3520 472-3520 472-3520 92-5071-406 Adjusting Screw 211-18519 211-18520 211-18520 211-18520 Clamp Bushing 211-18518 211-18521 211-18523-1 211-18523-1 Clamp Bushing Screw 92-5390-812 92-5390-1020 92-5390-1020 92-5390-1020 Bushing Screw 92-5390-812 92-530-1020 92-5390-1020 92-5390-1024 Body 211-18501-5 211-18502-2 211-18503-5 211-18524 Tool No. 712-185-1125 712-185-1150 712-185-1175 Body 212-18504 212-18504 212-18504 Swivel Complete 212-18505 212-18505 212-18505 Shoe 212-18516 212-18516 212-18516 Adjusting Screw 212-18506 212-18506 212-18506 Washer 92-2010-1604-32 92-2010-1604-32 92-2010-1604-32 Clamp Screw 92-5035-1640 92-5035-1640 92-5035-1640 Bushing Clamp Screw 92-5010-1636 92-5010-1636 92-5010-1636 Brass Pin 92-5010-1008 92-5010-1008 92-5010-1008 Swivel Clamp Screw 92-5390-1216 92-5390-1216 92-5390-1216 Shank 212-18501 212-18502 212-18503 Carbide Knurl Pin 211-18514 211-18514 211-18514
