No. 66 Drilling and Turning Tools

Perform Two Operations Simultaneously!

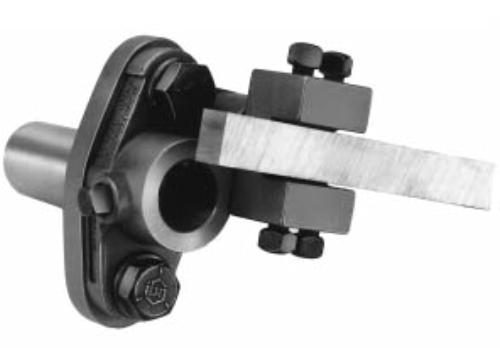

Fully adjustable, with drill held by a bushing in an adjustable head, similar to the No. 65

Adjustable Tool Holders.

The turning blade is mounted in a blade holder, which is securely clamped in an arm

protruding from the side of the adjustable head. The blade cust tangentially and can be

adjusted longitudinally along the length of the work. Tools can be adjusted to cut either

left hand or right hand.

With these adjustments the operator can set his drill in the best position for stick-out

with chip clearance and then set the turning blade in its correct relation with the drill.

These tools can be used for chamfering, facing and light turning with drill, centerdrill or counterbore.

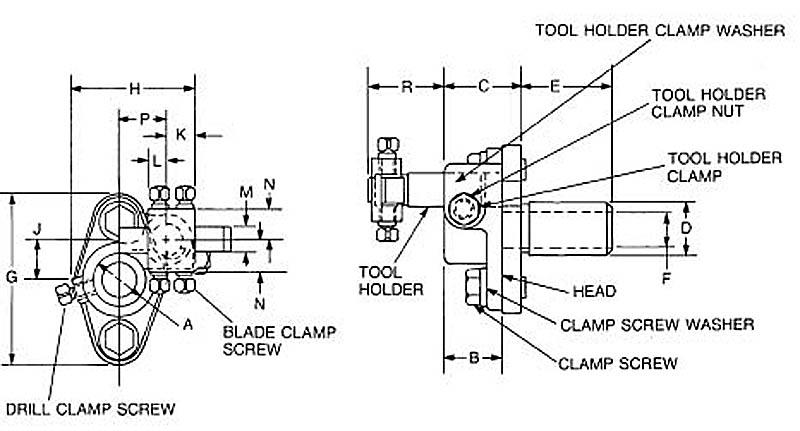

Maximum Shank Diameter Turned Diameter Tool No. 5/8" 3/8" 711-66-100 3/4" 11/16" 711-66-120 1" 1" 711-66-122 1-1/4" 2.4 711-66-123 Inches Tool No. A B C D E F G H J 711-66-100 1/2 19/32 13/16 5/8 1-1/8 3/8 1-15/16 1-5/16 5/16 711-66-120 5/8 13/16 1-1/8 3/4 1-1/2 7/16 2-5/8 1-13/16 9/16 711-66-122 1 1-1/8 1-1/2 1 1-3/4 11/16 3-1/4 2-3/8 3/4 711-66-123 1 1.1 1.5 1.25 2 0.81 4.3 3.15 1.4 Inches Tool No. K L M N P Max Min Blades 711-66-100 5/16 1/4 1/4 5/16 1/2 13/16 7/16 1/4 x 1/4 711-66-120 7/16 11/32 7/16 1/2 3/4 1-3/32 19/32 5/16 x 7/16 711-66-122 9/16 3/8 1/2 5/8 15/16 1/-7/16 5/8 3/8 x 1/2 711-66-123 0.65 0.65 0.5 0.6 1.4 1.55 0.75 3/8 x 1/2 Tool No. 711-66-100 711-66-120 711-66-122 711-66-123 Head 211-6604-1 211-6605 211-6606 211-6616 Clamp Screw 211-6535-1 92-5035-1020 92-5035-1228 92-5035-1632 Clamp Screw Washer 211-10545-1 92-2040-1002-20 92-2040-1204-24 92-2040-2604-28 Tool Holder 211-6607-1 211-6608 211-6609 211-6614 Tool Holder Clamp 211-6610 211-6611 211-6612 211-6614 Tool Holder Cl. Washer 92-2040-602-12 92-2040-1002-20 92-2040-1202-20 92-2040-1202-20 Tool Holder Cl. Nut 92-6010-611 92-6015-1012 92-6015-1214 92-6015-1214 Blade Clamp Screw 92-5012-810 92-5010-824 92-5012-1020 92-5012-1020 Drill Clamp Screw 92-5012-812 92-5012-816 92-5012-1016 92-5012-1020 Shank 211-6601 211-6602 211-6603 211-6537 Blade 711-94074 711-94082 711-94085 711-94085
