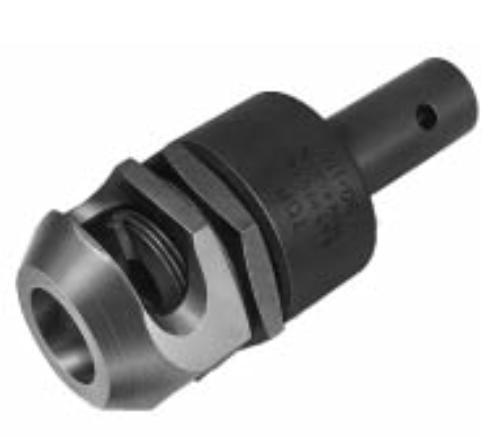

No. 90 Releasing “Acorn” Die Holder

Releases Without Shock!

B & S Releasing "Acorn Die Holders have a built-in clutch mechanism that allows the holder to

be released without shock.

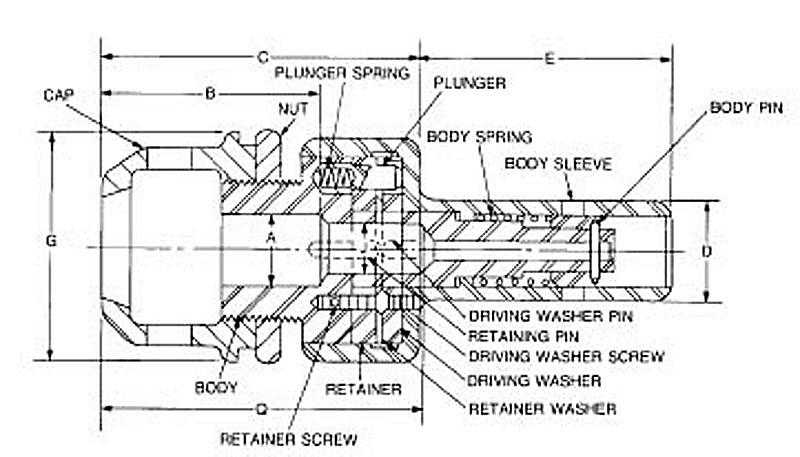

Shank Threading Capacity Dia. Length Diameter Tool No. 5/8" 7/8" from 1/16" to 1/4" 711-90-100 5/8" 1-2/8" from 1/4" to 5/16" 711-90-110 3/4" 1-1/2" from 1/4" to 7/16" 711-90-111 1" 2-1/8" from 3/8" to 11/16" 711-90-112 Die No. Inches Tool No. Used A B C D E G J Q 711-90-100 1 3/8 15/16 1-3/4 5/8 1-3/32 1-13/32 -- -- 711-90-110 2 3/8 1-9/16 2-1/4 5/8 1-7/16 1-13/32 -- -- 711-90-111 2 1/2 1-1/2 3-1/4 3/4 2 1-11/16 -- -- 711-90-112 3 3/4 2-1/8 3-1/8 1 2-1/2 2 9/16 3-1/4 Tool No. 711-90-100 711-90-110 711-90-111 711-90-112 Body Pin 211-7544 211-7544 92-900-414 211-8032 Body Spring 211-8036 211-8036 92-1000-1840-19 92-1000-2238-18 Body Sleeve 211-8017 211-8017 211-7517 211-8018 Driving Washer 211-8028 211-8028 211-8023 472-79 Driv. Washer Screw 92-5081-408 92-5081-408 92-5081-408 211-8038 Driv. Washer Pin 92-900-408 92-900-408 92-900-408 92-900-612 Plunger 211-8033 211-8033 211-8034 211-8035 Plunger Spring 92-1000-610-26 92-1000-610-26 92-1000-610-26 92-1000-612-26 Retainer 211-8026 211-8026 211-8021 211-8024 Retainer Screw 211-8039 211-8039 92-5081-416 472-1329 Retainer Washer 211-8027 211-8027 211-8022 211-8025 Retainer Pin 92-900-416 92-900-418 NONE 92-900-620 Roller 211-8031 211-8031 211-8031 211-8030 Cap 479-107 479-3109 479-3109 479-3111 Nut 479-3108 479-3110 479-3110 479-3112 Body 211-9001 211-9002 211-9003 211-9004 Shank 211-9006 211-9007 211-9008 211-9010
