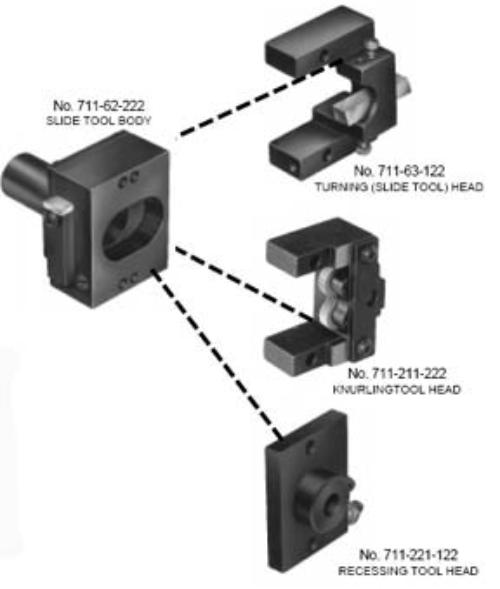

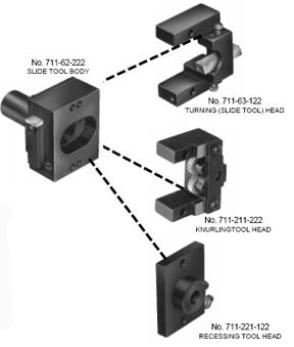

Slide Tool with Interchangeable Heads
Slide Tool Body With 3 Interchangeable Heads for Recessing, Turing, Knurling
Features:
•
Faster, easier set-up with one-to-on movement ratio
•
Straight-line movement
•
Greater rigidity
•
Lower tool cost
Now, you can have a rigid, straight-line movement, one-to-one movable slide tool which
holds any of three heads for recessing, turning and knurling, and eliminates the problems
associated with swing type tools.
A standard guide mounted on the front cross slide of the machine actuates the Slide Tools
so that movement of the slide is equal to the amount of throw on the cross slide cam.
Slide Tool Body - Saves!
This Slide Tool Body is a rugged holder with a one-inch diameter shank which will accept
any of three new heads for recessing, for turning, and for knurling. Slide travel of 9/16"
provides ample machining capacities and straight-line, one-to-one movement ratio makes cam and tool design faster and easier
than ever.
Save 50% and More on Tool Costs! Save Time in Cam and Tool Design!
Turning (Slide Tool) Head
This Slide Tool Body is a rugged holder with a one-inch diameter shank which will accept any of three new heads for recessing,
for turning, and for knurling. Slide travel of 9/16" provides ample machining capacities and straight-line, one-to-one movement
ratio makes cam and tool design faster and easier than ever.
Knurling Tool Head
Now you can produce diamond knurls int he middle of a poiece or behind a shoulder using a right hand and a left hand diagonal
knurl. A pivoting fulcrum insures self-equalizing pressure on the knurls for uniform depth. Carbide pin provides long life. Can be
used with No. 230 Back Rest.
Recessing Tool Head
Straight-line movement eliminates the problem of determining radial variance between diameters associated with swing tool
recessing. Constant center-line machining permits grinding of correct geometry on tools for angular or diameter dimensions.
Design permits "On" or "Off" Center positioning for use of either Eccentric or Concentric tools and alternative mounting on Slide
Tool Body provides 9/32" or 9/16" travel from center to permit wider use of standard sizes of Recessing Tools
Slide Tool with Interchangeable Heads

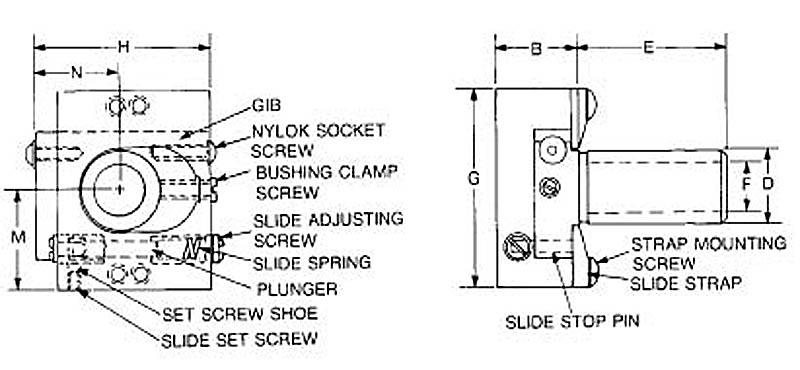

Dimensions - No. 62 Slide Tool Body
Tool No. 711-62-222-1

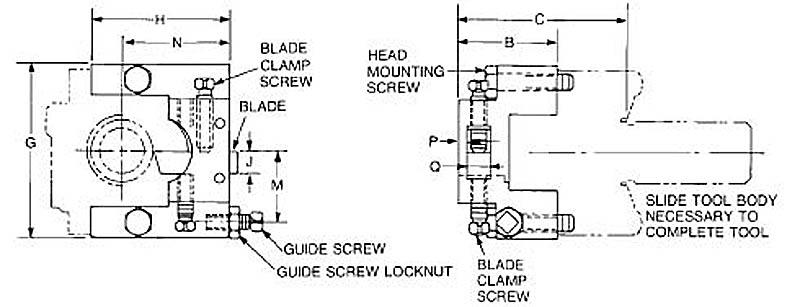

Dimensions - Slide tool (Turning) Head
Tool No. 711-63-122

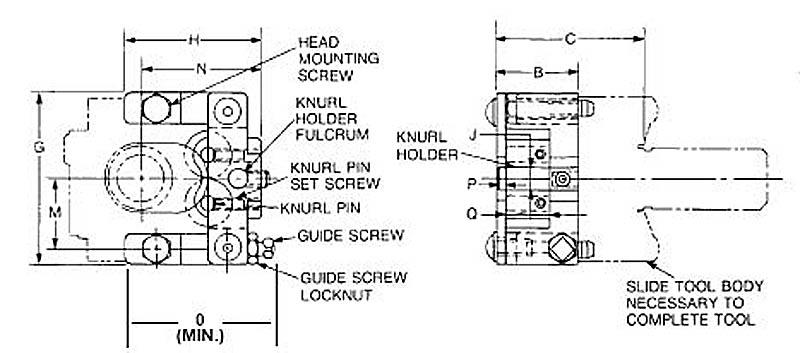

Dimensions No. 211 Knurling Tool Head No. 711-211-222

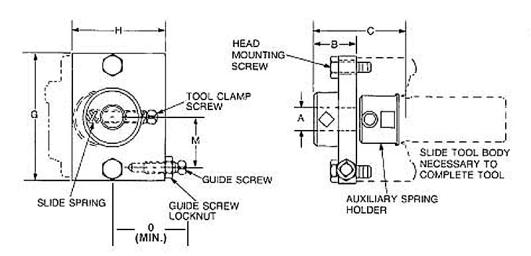

Dimension No. 221 Recessing Tool Head No. 711-221-122
