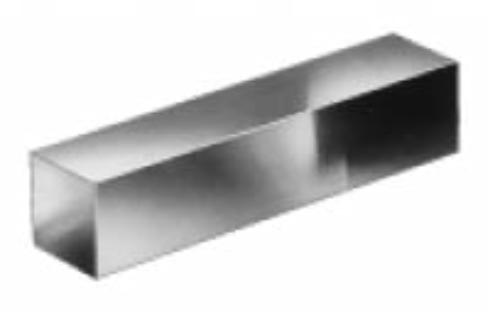

Turning Blanks (Tool Bits) High Speed Steel

B & S blades are made of carefully hardened and ground High Speed Steel to provide long operating life

and clean cutting qualities on a variety of materials, in toolroom and production applications.

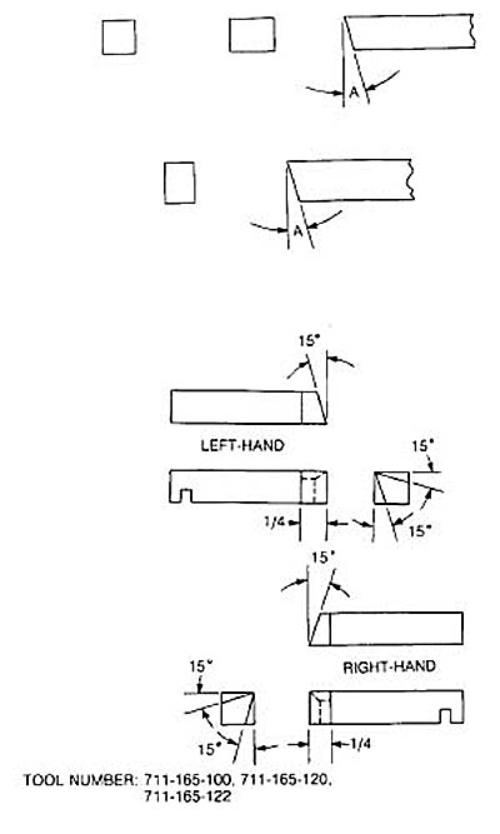

Size, Inches Tool No. 3/16 x 1/4 x 1-1/4 711-94072 1/4 x 1/4 x 1-1/2 711-94074 1/4 x 5/16 x 1-5/8 711-94075 1/4 x 3/8 x 3 711-94076 1/4 x 1/2 x 4 711-94078 1/4 x 3/4 2-1/2 711-94079 5/16 x 5/16 x 2-1/2 711-94080 5/16 x 3/8 x 1-3/4 711-94081 5/16 x 7/16 x 3-1/2 711-94082 3/8 x 3/8 x 3 711-94083 3/8 x 7/16 x 2-1/2 711-94084 3/8 x 1/2 x 4 711-94085 7/16 x 7/16 x 3-1/2 711-94086 7/16 x 1/2 x 1-3/4 711-94087 1/2 x 1/2 x 4 711-94088 1/2 x 5/8 x 4-1/2 711-94089 1/2 x 3/4 x 5 711-94090 3/4 x 3/4 x 5 711-94091 3/4 x 1 x 6 711-94071 1/2 x 1/2 x 2-3/4 711-94092* 7/16 x 6/16 x 2-1/8 711-94093* * These only have 24° bevel at each end. Tool No. Angle "A" Tool No. Angle "A" Tool No. Angle "A" 711-45-400 24° 711-54-122 24° 711-155-220 12° 711-45-500 24° 711-58-122 24° 711-155-222 12° 711-45-600 24° 711-60-100 24° 711-160-220 15° 711-45-620 24° 711-60-120 24° 711-160-222 15° 711-45-322 24° 711-60-120 24° 711-161-220 15° 711-45-422 24° 711-60-222 24° 711-161-222 15° 711-46-300 24° 711-60-324 24° 711-162-100 15° 711-46-400 24° 711-61-100 24° 711-162-224 15° 711-46-220 24° 711-61-120 24° 711-163-100 15° 711-46-322 24° 711-61-122 24° 711-172-200 24° 711-49-110 24° 711-61-222 24° 711-172-120 24° 711-49-120 24° 711-61-224 24° 711-172-222 24° 711-49-122 24° 711-61-100 8° 711-173-122 24° 711-51-100 24° 711-62-120 8° 711-175-300 8° 711-51-320 24° 711-66-100 10° 711-175-220 8° 711-52-100 24° 711-66-120 10° 711-175-222 8° 711-52-220 24° 711-66-122 10° 711-175-224 8° 711-52-222 24° 711-125-324 15° 711-176-300 8° 711-52-124 24° 711-125-424 15° 711-176-222 8° 711-53-122 24° 711-155-200 12° 711-176-124 8°
Brown-Sharpe SMT
Division of Lester Detterbeck Enterprises Ltd.
Website Design by North Country Website Design.  _
Copyright © 2016 Brown-Sharpe SMT. A division of Lester Detterbeck Enterprises, Ltd.

Turning Blanks (Tool Bits) High

Speed Steel

B & S blades are made of carefully hardened

and ground High Speed Steel to provide long operating life and

clean cutting qualities on a variety of materials, in toolroom and

production applications.

Size, Inches Tool No. 3/16 x 1/4 x 1-1/4 711-94072 1/4 x 1/4 x 1-1/2 711-94074 1/4 x 5/16 x 1-5/8 711-94075 1/4 x 3/8 x 3 711-94076 1/4 x 1/2 x 4 711-94078 1/4 x 3/4 2-1/2 711-94079 5/16 x 5/16 x 2-1/2 711-94080 5/16 x 3/8 x 1-3/4 711-94081 5/16 x 7/16 x 3-1/2 711-94082 3/8 x 3/8 x 3 711-94083 3/8 x 7/16 x 2-1/2 711-94084 3/8 x 1/2 x 4 711-94085 7/16 x 7/16 x 3-1/2 711-94086 7/16 x 1/2 x 1-3/4 711-94087 1/2 x 1/2 x 4 711-94088 1/2 x 5/8 x 4-1/2 711-94089 1/2 x 3/4 x 5 711-94090 3/4 x 3/4 x 5 711-94091 3/4 x 1 x 6 711-94071 1/2 x 1/2 x 2-3/4 711-94092* 7/16 x 6/16 x 2-1/8 711-94093* * These only have 24° bevel at each end. Tool No. Angle "A" Tool No. Angle "A" Tool No. Angle "A" 711-45-400 24° 711-54-122 24° 711-155-220 12° 711-45-500 24° 711-58-122 24° 711-155-222 12° 711-45-600 24° 711-60-100 24° 711-160-220 15° 711-45-620 24° 711-60-120 24° 711-160-222 15° 711-45-322 24° 711-60-120 24° 711-161-220 15° 711-45-422 24° 711-60-222 24° 711-161-222 15° 711-46-300 24° 711-60-324 24° 711-162-100 15° 711-46-400 24° 711-61-100 24° 711-162-224 15° 711-46-220 24° 711-61-120 24° 711-163-100 15° 711-46-322 24° 711-61-122 24° 711-172-200 24° 711-49-110 24° 711-61-222 24° 711-172-120 24° 711-49-120 24° 711-61-224 24° 711-172-222 24° 711-49-122 24° 711-61-100 8° 711-173-122 24° 711-51-100 24° 711-62-120 8° 711-175-300 8° 711-51-320 24° 711-66-100 10° 711-175-220 8° 711-52-100 24° 711-66-120 10° 711-175-222 8° 711-52-220 24° 711-66-122 10° 711-175-224 8° 711-52-222 24° 711-125-324 15° 711-176-300 8° 711-52-124 24° 711-125-424 15° 711-176-222 8° 711-53-122 24° 711-155-200 12° 711-176-124 8°
